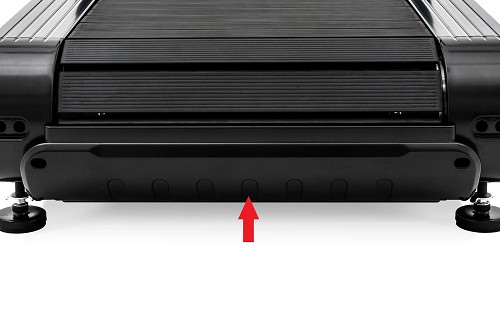

Essential Impact Armor: Sole® Fitness ST90 Slat-Belt Treadmill Genuine OEM Rear Tail-End Safety Shroud
Is your treadmill’s rear plastic shield cracked, shattered from an accidental impact, or missing completely after a recent home move? Are you hearing an unusual rattling sound near the rear roller, or are you worried about children, pets, or loose clothing getting caught near the high-speed moving parts?

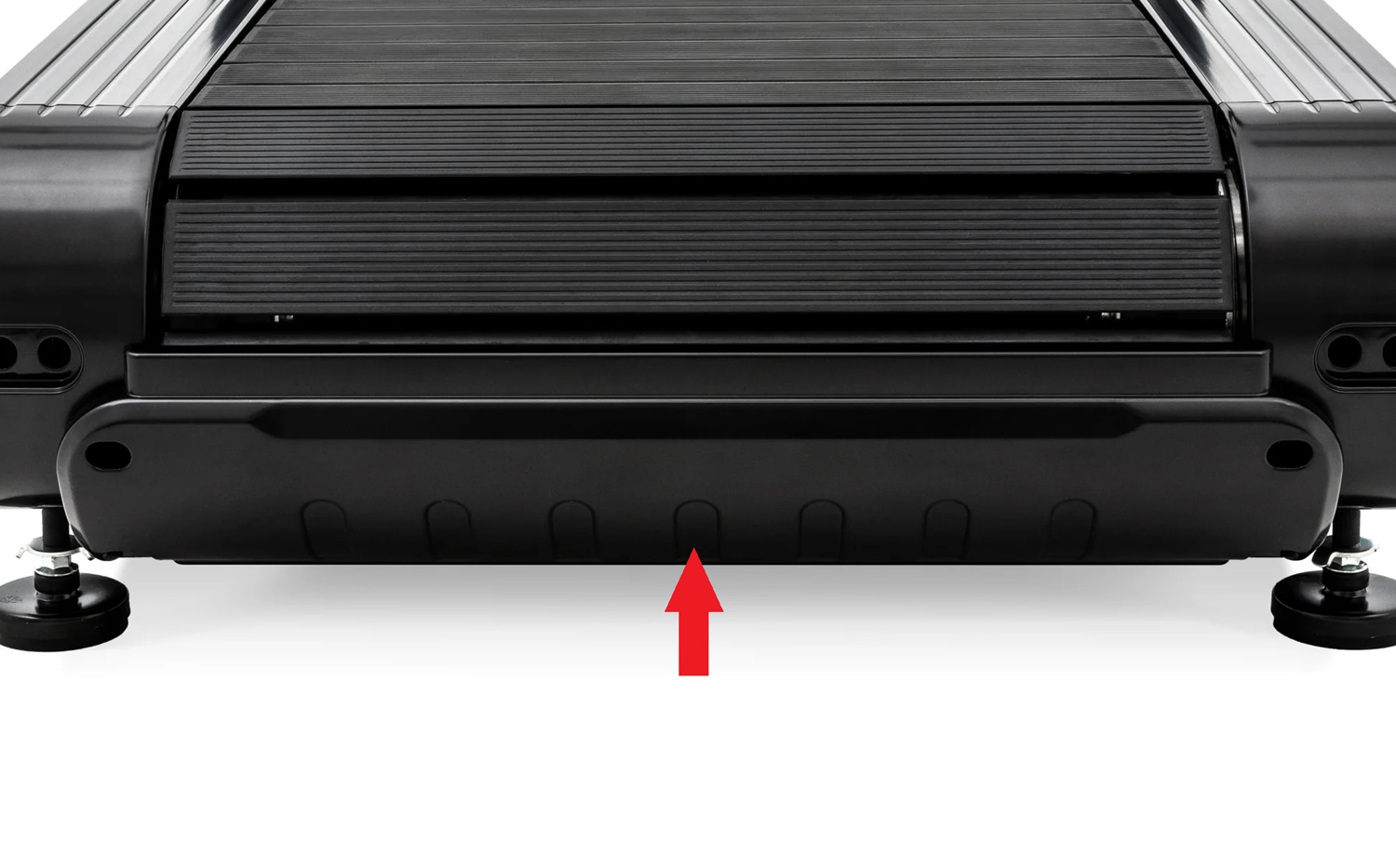

The intense, commercial-grade training platform of the Sole® Fitness ST90 Commercial Slat-Belt Treadmill is driven by an advanced, motorized loop of individual vulcanized rubber slats. Guarding the vulnerable rear tracking axis of this powerful system is the Genuine OEM Rear Protective Safety Shroud Assembly (Part No. PP030142-A1 / Diagram #150 / SKU SOL2000).
Sourced directly to precision original factory blueprints for the modern ST90 Slat-Belt Series (Serial Number prefixes starting with #590020 and newer), this heavy-duty, impact-resistant ABS composite barrier acts as a vital safety shield. It wraps tightly around the rear idler drum roller and the trailing edge of the slat track, maintaining a secure structural barrier between your training room floor and the high-torque internal drive mechanisms.
?? HIGH-STAKE BIOMECHANICAL SAFETY MANDATE
Never operate your ST90 without this cover installed!
Unlike traditional flexible, thin-layer 2-ply treadmill belts that slide smoothly over a flat wooden board, the Sole ST90 utilizes an open array of heavy, rigid vulcanized rubber slats. This design creates a powerful mechanical vacuum effect at the rear roller turnover point.
Operating the treadmill without this shield is extremely dangerous. Loose objects like towels, exercise bands, pet toys, or stray power cables can easily get sucked underneath the machine, causing massive, expensive damage to the aluminum guide rails, structural slat brackets, and drive tracking links. More importantly, severe bodily injury can occur to pets or bystander children if their hands or feet come into contact with the unguarded, high-torque crushing zone of the rotating rear rollers.
High-Impact Structural Specifications
Please check your treadmill's serial number plate on the front base rail before ordering to ensure immediate alignment.
High-Impact ABS Composite Armor: Formulated to withstand heavy, accidental rear kicks and heel strikes without fracturing, splintering, or denting.
Precision Airflow Vent Channels: Molded with structural cooling slits that allow internal friction heat to escape away from the rear idler roller bearings while blocking incoming debris.
Pre-Bored Countersunk Eyelets: Features factory-molded mounting ports designed to accept your original high-tensile frame alignment screws cleanly with zero drilling.
Low-Acoustic Resonance Isolation: Engineered with sound-dampening interior ribs that eliminate rattling and vibration hums during high-speed training.
Signs Your Rear Safety Shroud Requires Immediate Replacement
Deep Structural Cracks or Splitting: An accidental drop or kick has split the plastic casing open, creating a jagged edge that catches your shoes or exposes the spinning internal mechanics.
Stripped or Broken Screw Anchor Brackets: The shroud's mounting holes have wallowed out or broken away entirely from vibration stress, causing the plastic guard to slide loose or rub directly against the rubber track.
Complete Shield Absence: The machine was set up without the rear protective tailpiece after moving, exposing the raw steel roller axle and the high-risk mechanical crush zone.
The 10-Minute Pro DIY Safety Shroud Installation Sequence
Installing your replacement safety shroud is a fast, critical 10-minute mechanical project using standard hand tools: a Phillips-head screwdriver and a flashlight:
1.Disconnect Power and Secure the Rear Deck:Complete Hardware Isolation.Turn off the main red rocker power switch near the power cord entry point and UNPLUG THE TREADMILL FROM THE WALL OUTLET. Ensure the running track has come to an absolute stop before approaching the rear of the machine.
2.Isolate the Carriage Bracket:Back Out Broken Shroud Fasteners.Locate the mounting screws anchoring the damaged plastic shroud to the rear steel frame drop brackets. Use your Phillips screwdriver to back the factory screws out counter-clockwise, keeping them in a safe place for reassembly.
3.Clear the Cockpit Access Lanes:Clear Debris and inspect Rear Tracks.Slide the broken plastic shell off the frame. Use a flashlight to inspect the rear idler drum roller area. Clean out any trapped carpet fibers, lint, or dust rabbits that have settled near the axle brackets.
4.Anchor the New Command Core:Align and Slide on the New OEM Guard.Position your Brand-New OEM Sole ST90 Rear Safety Shroud straight over the tail end of the treadmill frame. Slide it forward gently until the curved plastic contours snap flush against the side frame rails and the pre-bored eyelets align with the metal frame nuts.
5.Execute Fast Structural Seating:Torque Fasteners and Verify Clear Airflow.Hand-thread the factory screws back into the alignment holes, then tighten them snug with your Phillips screwdriver. Do not over-torque to avoid cracking the new plastic composite. Plug the treadmill back into the wall, start it at 2 MPH, and verify that the track spins silently with zero rubbing against the fresh cover!
Pro Tip: The Static Debris Prevention Wipe
Because your ST90's heavy rubber slats spin continuously at high speeds, they naturally generate a micro-current of static electricity. This static acts like a magnet for airborne dust, pet hair, and clothing lint, pulling it straight toward the rear of the deck where it piles up inside the safety shroud cover. To stop this buildup before it starts, spray the inside face of your new safety shroud with a standard household anti-static laundry spray or wipe it down with a dryer sheet before screwing it into place. This simple trick prevents dust from sticking to the cover, keeping your internal tracking lanes clean!
Eliminate high-risk pinch points, safeguard pets and children, and shield your high-end machine from expensive internal damage.
